In the high-stakes world of motorsport, every gram and every micron counts. Whether it’s Formula 1, NASCAR, or the frontier-pushing World Solar Challenge, victory is forged at the intersection of innovative design and flawless manufacturing. Custom mechanical parts are the unsung heroes, translating aerodynamic simulations and stress analyses into physical reality on the track.
At KaiSpeed, we thrive under this pressure. We are the behind-the-scenes engineering partner that empowers racing teams to push boundaries. This case study delves into how we collaborated with a top-tier university solar racing team from the Netherlands to manufacture mission-critical components, overcoming extreme precision demands and an accelerated timeline to help power their journey to the starting line in Australia.
Project Overview: The Quest for Efficiency
The Client: A talented, student-led Dutch solar racing team competing in the Bridgestone World Solar Challenge—a grueling 3,000km race across the Australian outback powered solely by the sun.
The Challenge: The team needed custom, high-performance suspension and drivetrain components that were lightweight, incredibly strong, and machined to exacting tolerances to ensure optimal efficiency and reliability.
The Goal: Deliver zero-compromise parts that would contribute directly to the car’s performance, allowing the team to focus on strategy and driving.
| Project Aspect | KaiSpeed Solution |
|---|---|
| Industry | Automotive / Motorsport & Solar Racing |
| Key Parts | Front Upright (Knuckle), Axle, and other custom mechanical assemblies |
| Primary Challenge | Ultra-High Precision (±0.025mm) for critical interference fits |
| Secondary Challenge | Compressed Lead Time for race preparation |
| Technology Utilized | 5-Axis CNC Milling, CNC Turning, Precision Boring |
| Material | AL7075-T6 – Chosen for its superior strength-to-weight ratio |
| Surface Finish | As-Machined & Anodized for corrosion resistance and durability |
| Quantity | 4 complete sets |
| Lead Time Achieved | 14 Working Days (Expedited from a standard 3-week schedule) |
This project highlights how high-precision CNC machining directly impacts performance, reliability, and race-day readiness in solar racing applications.
Deep Dive: Conquering Engineering Challenges

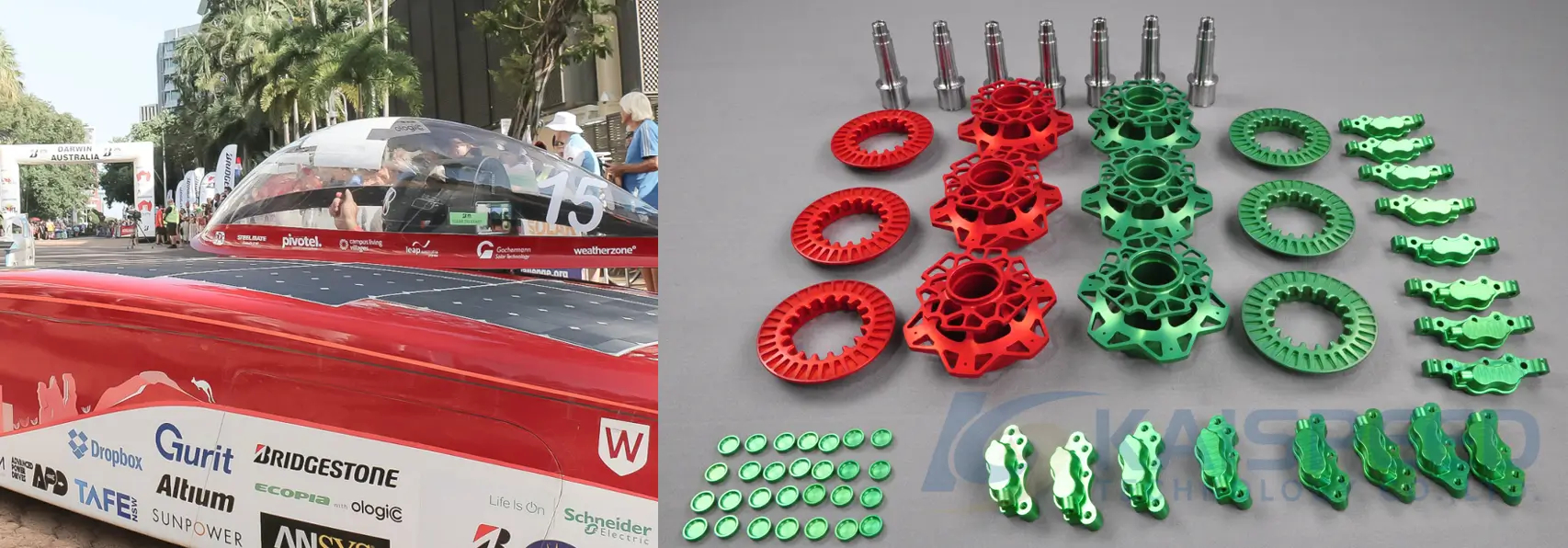

The project centered on two interlinked components: the Axle and the Front Upright. Their assembly was critical for wheel alignment, steering precision, and overall structural integrity.
Challenge 1: Mastering Micron-Level Precision
The core requirement was an interference fit between the axle and the upright’s bore. The specified tolerance band was exceptionally tight: H7 (0, +0.025mm). This is less than the thickness of a human hair. A fit too loose would cause dangerous play; too tight could make assembly impossible or crack the upright.
The KaiSpeed Engineering Approach:
- Proactive DFM & Simulation: Before any metal was cut, our engineers analyzed the 3D models. For the complex Front Upright, we identified the deep (75mm), small-diameter (10mm) bore as a critical challenge. We used toolpath simulation software to visualize the machining process, ensuring stability and accuracy. This proactive step was highlighted by the client: “We were impressed by… you included a simulation of the cutting machines to show us why some features were challenging.”
- A “System” Mindset, Not Just “Parts”: Instead of machining both parts independently to their drawing limits, we employed a matched machining strategy.
- First, we CNC turned the Axle to precise dimensions.
- We then measured the actual finished diameter of each axle with high-precision instruments.
- Finally, we CNC machined the bore on the 5-axis Upright, using the actual axle measurement as the target. This guaranteed a perfect, predictable interference fit every single time.
- Technology Deployment: For the upright’s complex geometry, KaiSpeed’s 5-axis CNC machining capabilities were indispensable. 5-axis machining allowed us to approach the part from optimal angles in a single setup, minimizing errors from re-fixturing and ensuring exceptional accuracy across all features.
| Challenge | KaiSpeed Solution | Result |
|---|---|---|
| H7 Tolerance on a Deep, Small Bore | Used a dedicated precision boring tool for a perfect, straight finish, rather than a standard drill or end mill. | Achieved a consistent, high-quality bore meeting the ±0.025mm specification. |
| Complex 3D Geometry of Upright | Leveraged 5-axis simultaneous machining to complete the part in fewer setups. | Maximized accuracy, improved surface finish, and reduced overall machining time. |
| Ensuring a Perfect Axle-Upright Fit | Implemented a matched, sequential machining process based on real measured data. | Delivered four sets of components that assembled seamlessly, with no post-machining rework required. |
Challenge 2: Winning the Race Against the Clock
Racing schedules are immutable. The team needed the parts not just for the race, but for crucial pre-race testing and tuning.
The KaiSpeed Operational Response:
Upon order confirmation, this project was flagged as a priority motorsport build. Our project management team coordinated seamlessly with the production floor:
- Material Readiness: Certified AL7075-T6 stock was prepared and verified immediately.
- Machine Scheduling: Dedicated time was allocated on our most suitable 5-axis and turning centers.
- Concurrent Workflow: While the axle design was finalized, programming and setup for the uprights commenced.
- Streamlined QC: Our quality control team performed in-process checks, integrating inspection seamlessly into the production flow without creating bottlenecks.
This coordinated effort allowed us to compress the lead time by 33%, delivering all parts in just 14 business days.
Why KaiSpeed is the Ideal Partner for Racing & Performance Parts
This solar car project exemplifies our broader capabilities in serving the motorsport and high-performance automotive sector.
- Expertise in Performance Materials: We excel at machining AL7075-T6, 6061-T6, Titanium (Ti-6Al-4V), and Pre-Heat-Treated Steels—the materials that define modern racing.
- Design for Motorsport (DFM) Consultation: Our engineers speak the language of performance. We help optimize designs for weight reduction, stress management, and manufacturability without sacrificing strength.
- Rapid Prototyping to Endurance Production: We support the entire lifecycle, from a single functional prototype for wind tunnel or track testing to low-volume production runs for limited-edition builds or replacement parts.
- Full Supply Chain Transparency: From material certifications to full inspection reports (FAI), we provide the documentation that serious engineering teams require.
Client Feedback: The True Measure of Success
“Thank you for your great help during our hardest period… I would like to add that one of the points that I and all the mechanics in the team have appreciated is your direct communication and being clear. Thanks a lot for helping us and contributing to our success and making everything for us in a relatively short period.”
— Anas, Technical Manager, Dutch Solar Racing Team
This feedback underscores what we value most: being a responsive, communicative, and reliable partner when our clients’ projects are on the line.
